In this comprehensive guide, we will explore what a fermentation cylinder is, how it works, the advantages of deep-drawn fermentation cylinders, and why choosing a reliable manufacturer like us is crucial to your production success.
What Is a Fermentation Cylinder?
A fermentation cylinder is a specialized container or vessel designed specifically for the fermentation process. Fermentation is a biochemical reaction where microorganisms such as bacteria, yeast, or fungi convert organic compounds—often sugars—into desired products like alcohol, acids, gases, or other metabolites.
The fermentation cylinder provides a controlled environment that maintains optimal temperature, pressure, and sanitation conditions, allowing the fermentation process to proceed efficiently and safely.
These cylinders are widely used across industries:
l Brewing and Distilling:For fermenting beer, wine, and spirits.
l Pharmaceuticals:For producing antibiotics, vaccines, and other biotech products.
l Food Industry:For yogurt, sauerkraut, kimchi, and other fermented foods.
l Chemical Industry:For bio-based chemical synthesis.

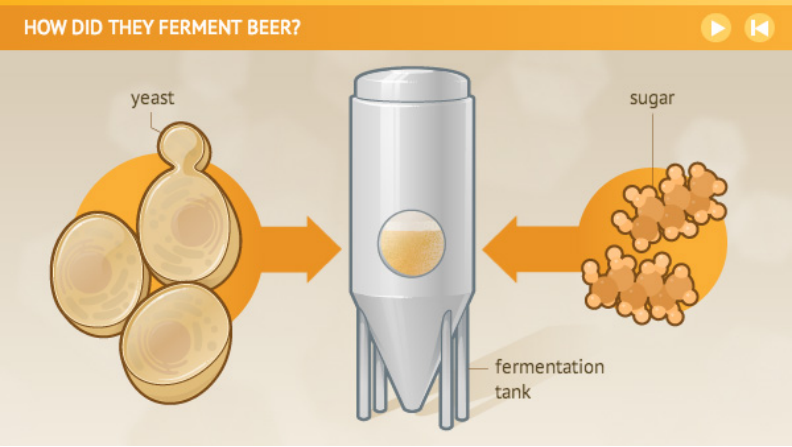

How Does a Beer Fermentation Tank Work?
The beer fermentation tank is the heart of the brewing process. Here's a step-by-step overview of how it works:
1. Filling the Tank with Wort
After the mashing and boiling stages, the hot wort is cooled and transferred into the fermentation tank.
2. Yeast Inoculation
The brewer adds yeast to the wort inside the tank. The yeast begins metabolizing sugars, initiating fermentation.
3. Temperature and Pressure Control
Fermentation generates heat and carbon dioxide, so the tank is equipped with cooling jackets or coils to maintain optimal temperature—usually between 8°C and 20°C depending on the beer style. Pressure relief valves control excess CO₂ buildup.
4. Fermentation Process
Yeast consumes sugars, producing alcohol and CO₂. This process can last from several days to weeks, depending on the beer type.
5. Yeast Separation
Thanks to the conical bottom design, yeast and sediment naturally settle, making it easy to collect or remove excess yeast.
6. Conditioning and Maturation
After active fermentation, beer may remain in the tank for conditioning, allowing flavors to mature and unwanted byproducts to dissipate.
7. Beer Transfer
Finally, the finished beer is transferred out for filtration, carbonation (if necessary), packaging, and distribution.
Advantages of Deep-Drawn Fermentation Cylinders
1. Deep drawing forms the tank body from a single metal sheet without welds, reducing contamination risks and improving tank strength.
2. The tanks resist corrosion, pressure fluctuations, and thermal stress better than welded counterparts, extending their lifespan.
3. Smooth, seamless inner surfaces prevent microbial buildup, making cleaning and sterilization more effective.
4. Deep drawing allows us to tailor tank sizes, wall thicknesses, and shapes to meet exact brewing requirements.
5. Though technologically advanced, deep-drawn tanks offer competitive pricing by optimizing material use and manufacturing time.
Materials Used in Fermentation Cylinders
Material choice is critical for fermentation cylinders to ensure chemical resistance, durability, and food safety. The most common materials include:
l Stainless Steel (304, 316):The gold standard for fermentation cylinders due to corrosion resistance and ease of cleaning.
l Aluminum Alloys:Lightweight options but less common in fermentation.
l Specialty Alloys:For specific chemical resistances or temperature requirements.
As a deep drawing manufacturer, we specialize in forming stainless steel sheets into flawless fermentation cylinders that meet international hygiene standards.
Applications of Fermentation Cylinders
Brewing Industry
Fermentation cylinders are the heart of brewing operations. They allow brewers to convert malted grains into beer through yeast fermentation. Precise control of fermentation conditions in these cylinders affects the taste, alcohol content, and quality of the beer.
Pharmaceutical and Biotechnology
In these industries, fermentation cylinders are used to cultivate microorganisms producing antibiotics, enzymes, and vaccines. The need for sterility and precise control makes high-quality cylinders essential.
Food Industry
Many traditional foods rely on fermentation cylinders, including yogurt, kimchi, and sauerkraut. These cylinders maintain consistent environments to ensure safety and flavor.
Biofuel and Chemical Production
Fermentation cylinders support bioethanol and other bio-based chemical productions by providing controlled environments for microorganisms to convert biomass into energy.
Materials Used for Beer Fermentation Tanks
Stainless steel—especially grades 304 and 316—is the preferred material for beer fermentation tanks due to its excellent corrosion resistance, hygienic surface, and mechanical properties.
Other features often included:
l Food-grade polishing inside the tank to ensure easy cleaning.
l Insulation layers for better temperature control.
l Pressure and vacuum-rated designs for fermentation safety.
As a specialized deep drawing manufacturer, we expertly handle stainless steel sheets, transforming them into flawless beer fermentation tanks that comply with international brewing standards.
Common Types of Beer Fermentation Tanks
1. Open Fermentation Tanks Traditional vessels open to the atmosphere, allowing natural yeast activity but with higher contamination risks. Less common in modern breweries.
2. Closed Cylindroconical Tanks Most widely used modern type featuring a cylindrical upper section and conical bottom, designed for yeast separation and pressure resistance.
3. Horizontal Fermentation Tanks Used for specific beer styles or limited spaces, offering different fermentation dynamics.
Our expertise is focused on producing cylindroconical tanks with deep drawing technology for maximum performance.
Why Choose Us for Your Beer Fermentation Tanks?
1. Advanced Manufacturing Capabilities: We use precision deep drawing presses and automated welding (for attachments) to ensure each tank meets tight tolerances and seamless quality.
2. Customization and Flexibility: From pilot-sized tanks for craft breweries to large industrial units, we manufacture according to your specifications.
3. Quality Assurance: Our products undergo rigorous testing, including pressure, leak, and surface inspections, to guarantee durability and safety.
4. Competitive Pricing and Global Shipping: Being a China-based manufacturer allows us to offer cost-effective pricing with reliable logistics worldwide.
5. Technical Support: We provide professional consultation on tank design, installation, and maintenance to maximize your brewing efficiency.
Maintenance and Cleaning of Beer Fermentation Tanks
Maintaining your fermentation tanks properly ensures longevity and product quality:
l Clean-in-Place (CIP) Systems:Use automated cleaning cycles with caustic and acid detergents to remove residues.
l Regular Inspection:Check gaskets, valves, and seals for wear or leaks.
l Sanitization:Before each batch, sterilize tanks to prevent contamination.
l Temperature Control Check:Ensure cooling jackets or systems function correctly.
l Professional Servicing:Schedule periodic expert maintenance to inspect tank integrity.
Conclusion
A beer fermentation tank is an indispensable asset in the brewing process, directly impacting the quality and consistency of your beer. Employing deep drawing technology to manufacture these tanks guarantees seamless, durable, and sanitary vessels that help optimize fermentation efficiency.
As a trusted deep drawing manufacturer in China, we are committed to delivering top-notch beer fermentation tanks tailored to your brewery’s needs. Our advanced technology, quality materials, and customer-centric approach make us your ideal partner in brewing success.
If you’re interested in high-quality, cost-effective beer fermentation tanks made with deep drawing precision, contact us todayfor more information or a custom quote.
